FILTER COMPATIBILITY
Is Helios Filter compatible with your sink? Our water filter is designed to fit with 95% of USA commercial sinks. To ensure a fit, please see the faucet references below.

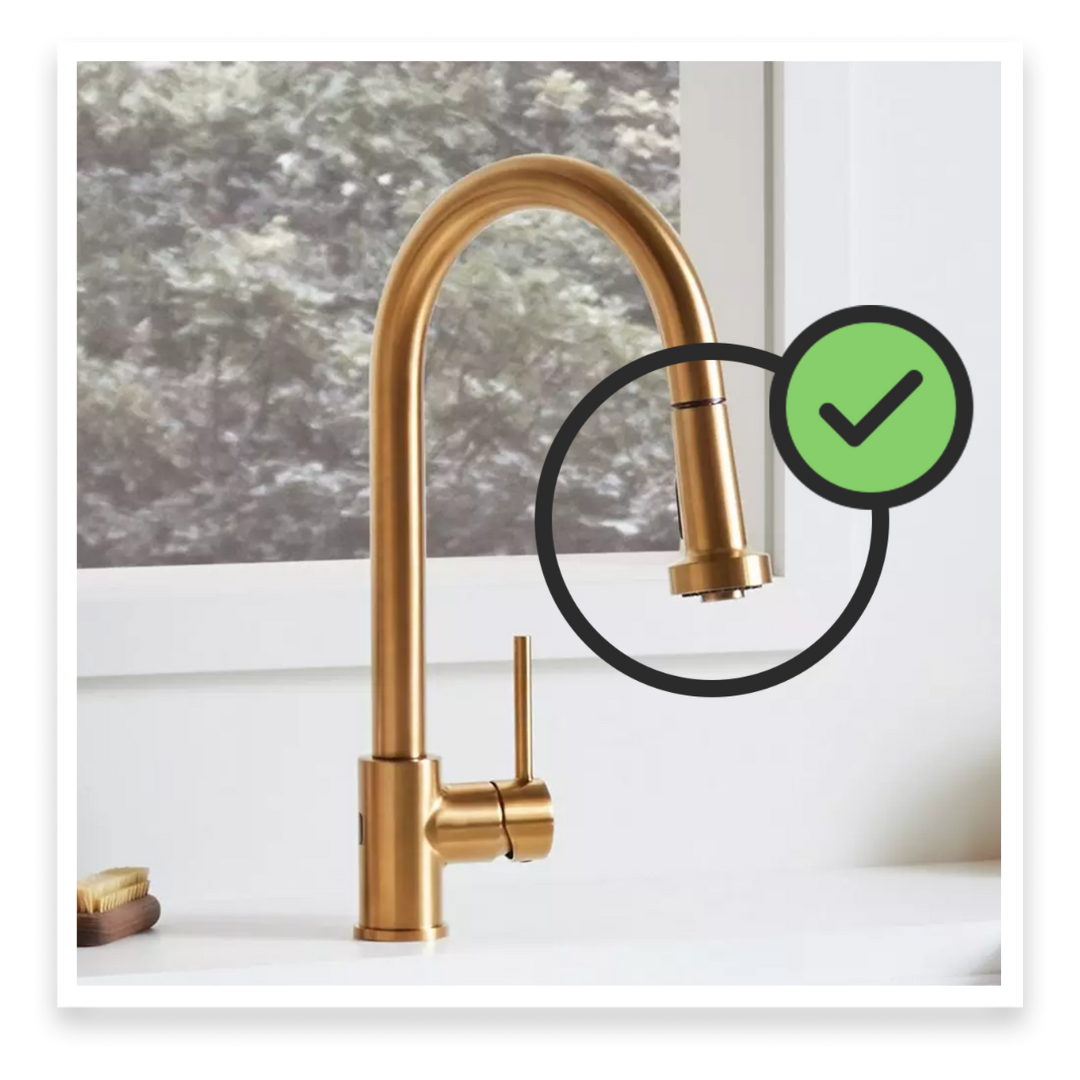

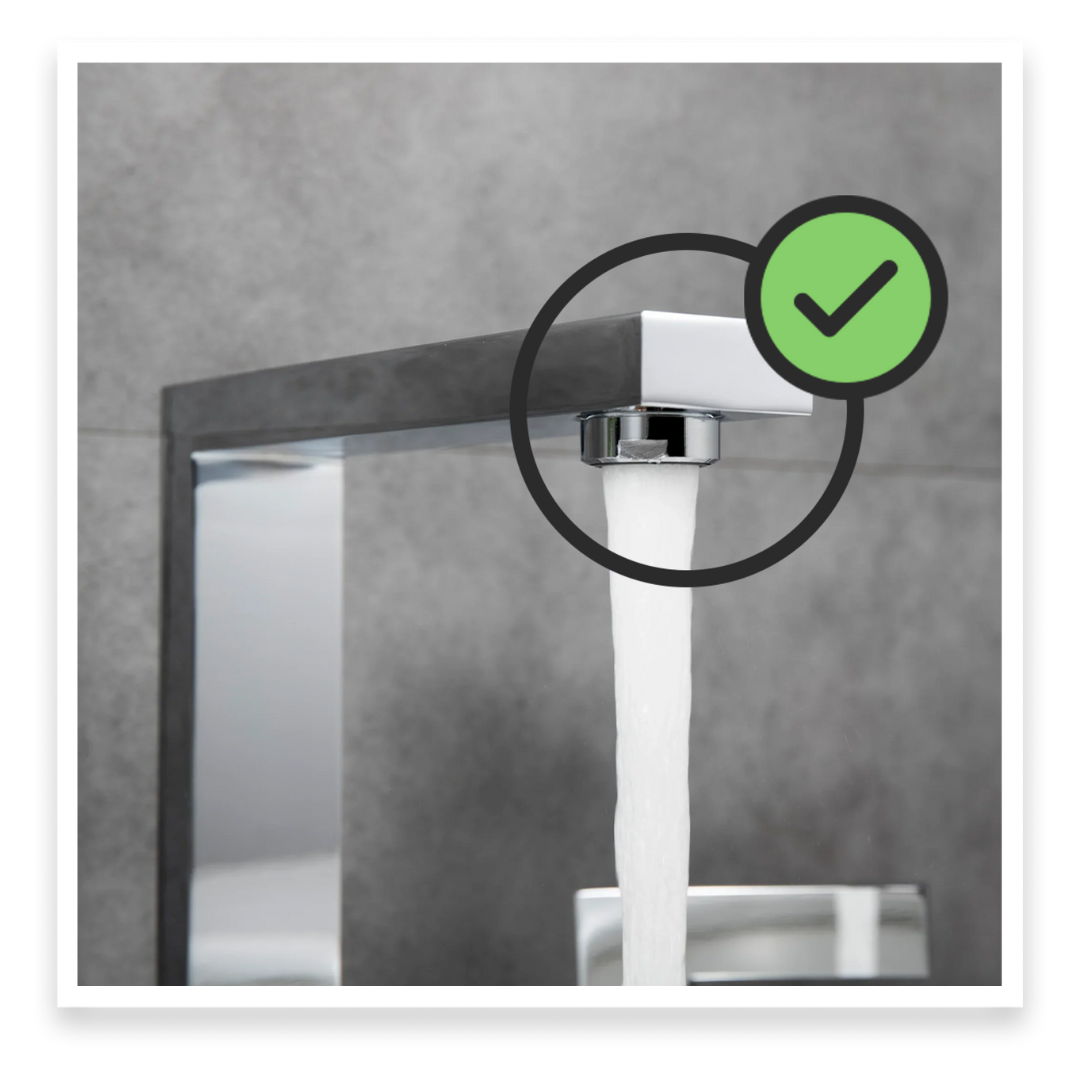

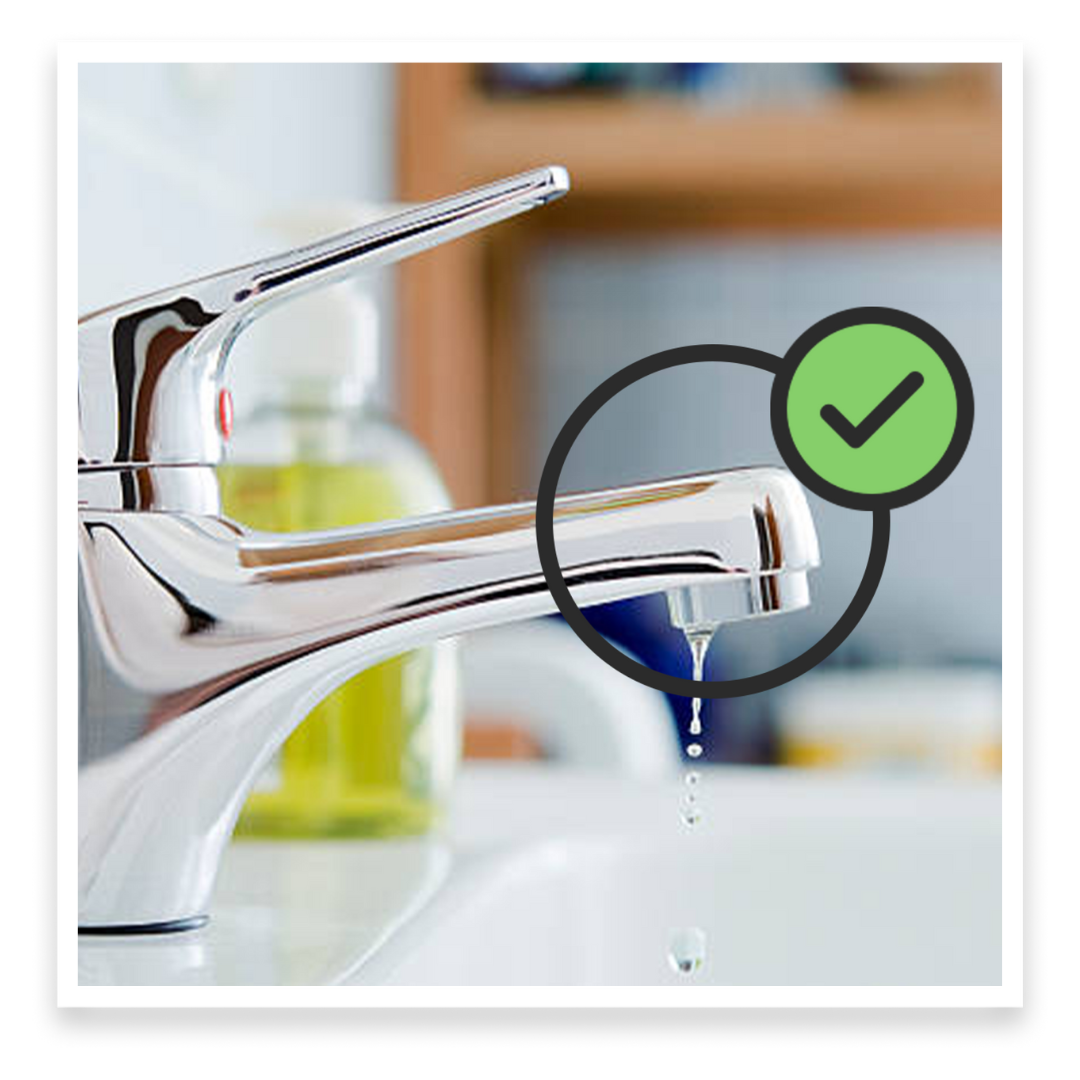

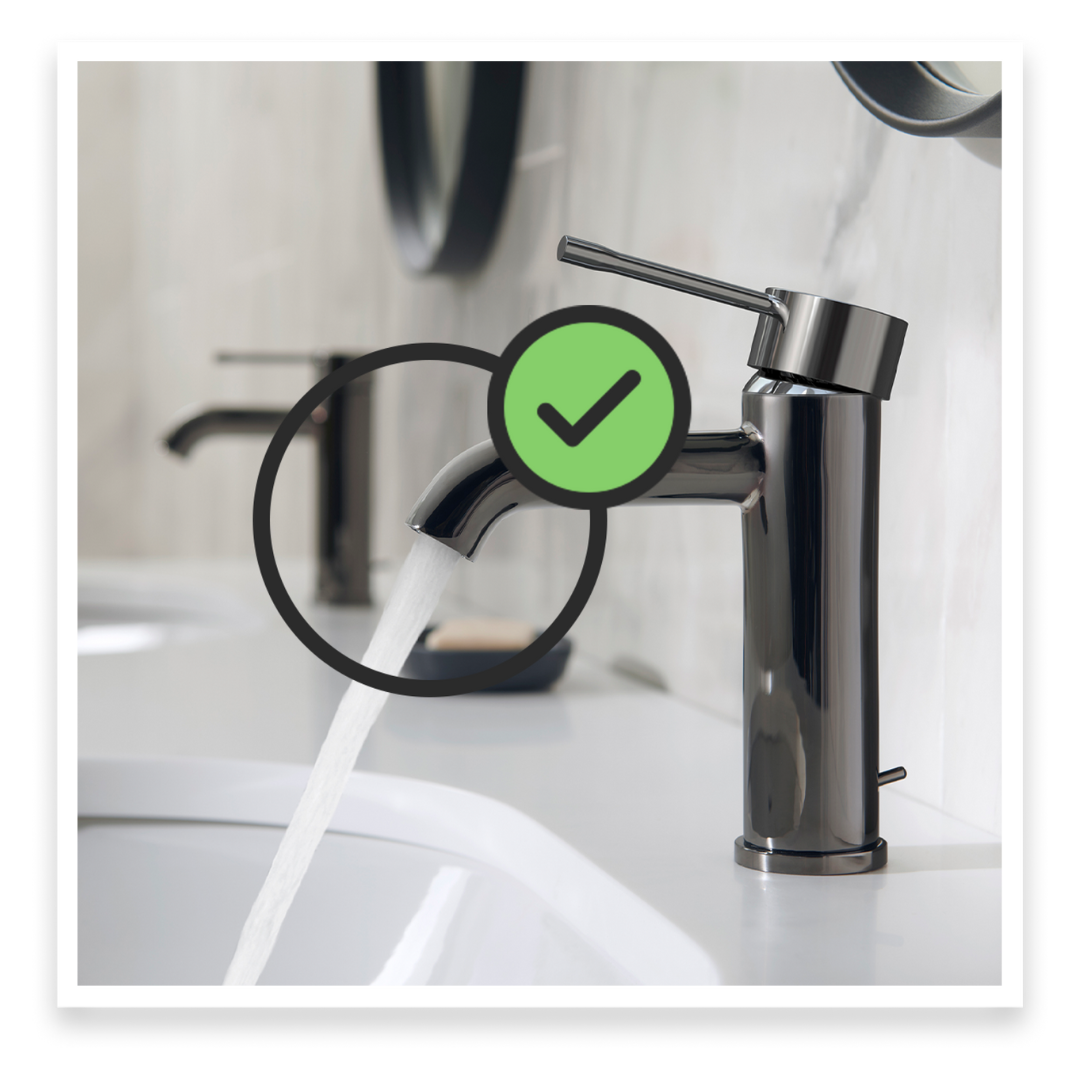

HELIOS COMPATIBLE FAUCETS

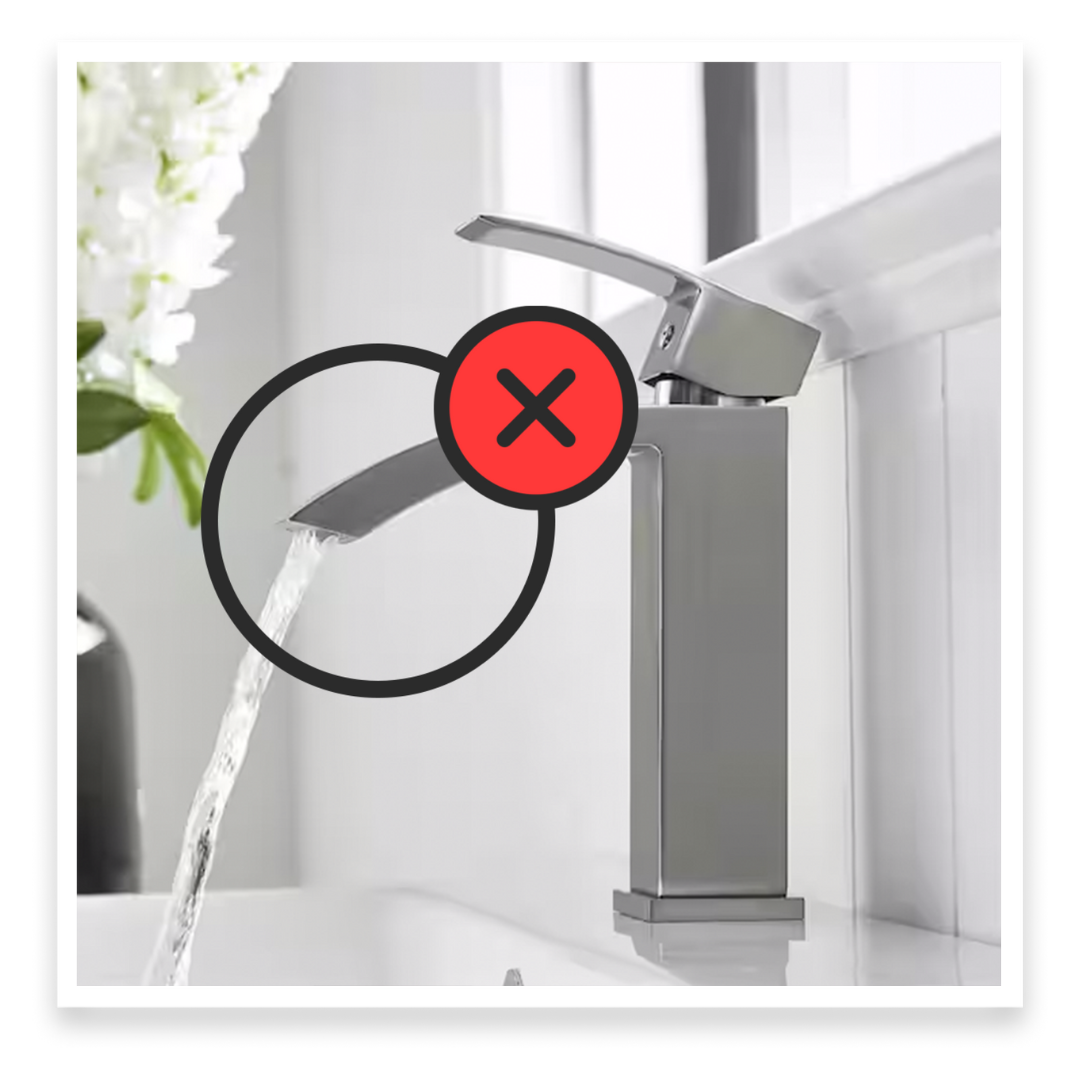

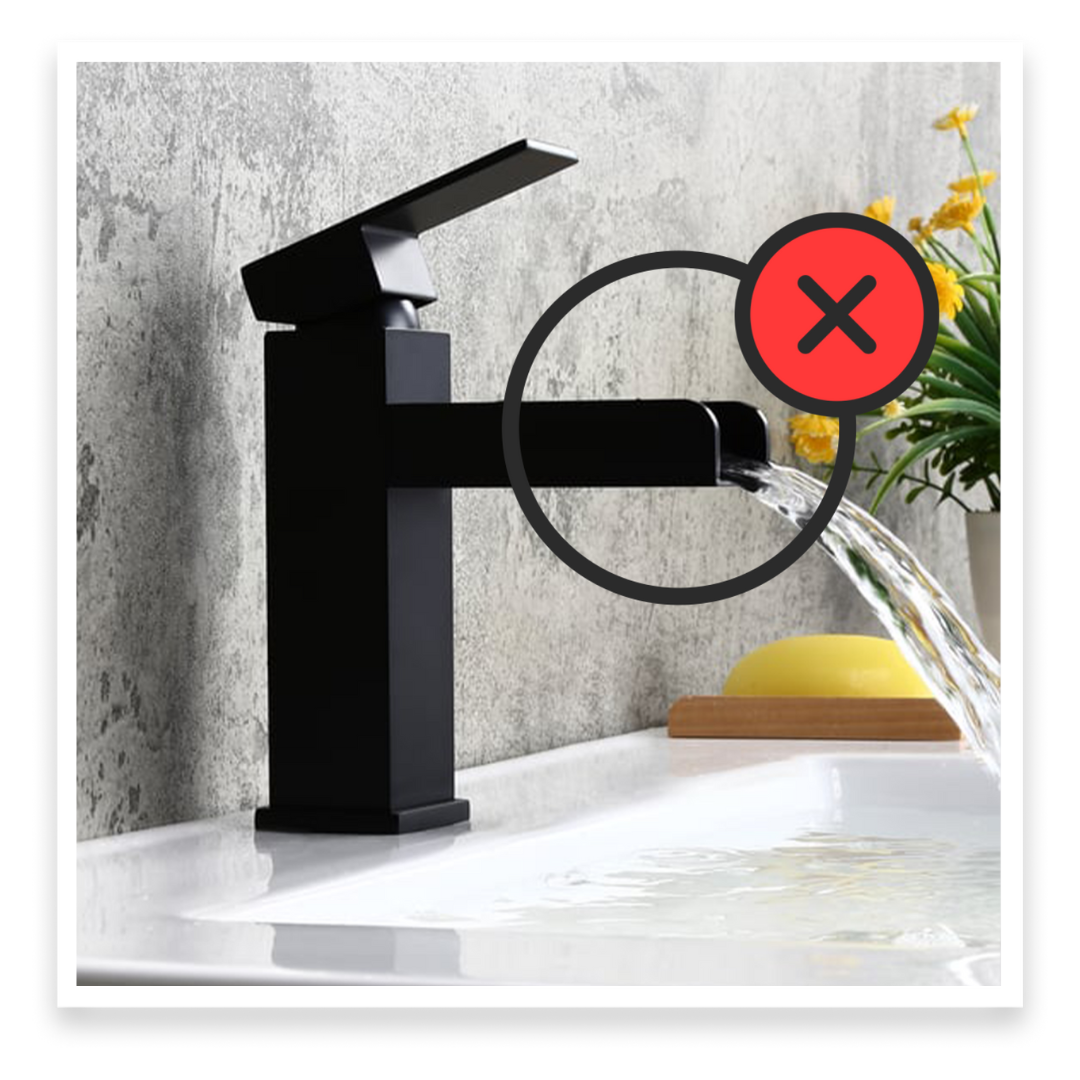

NONCOMPATIBLE FAUCETS

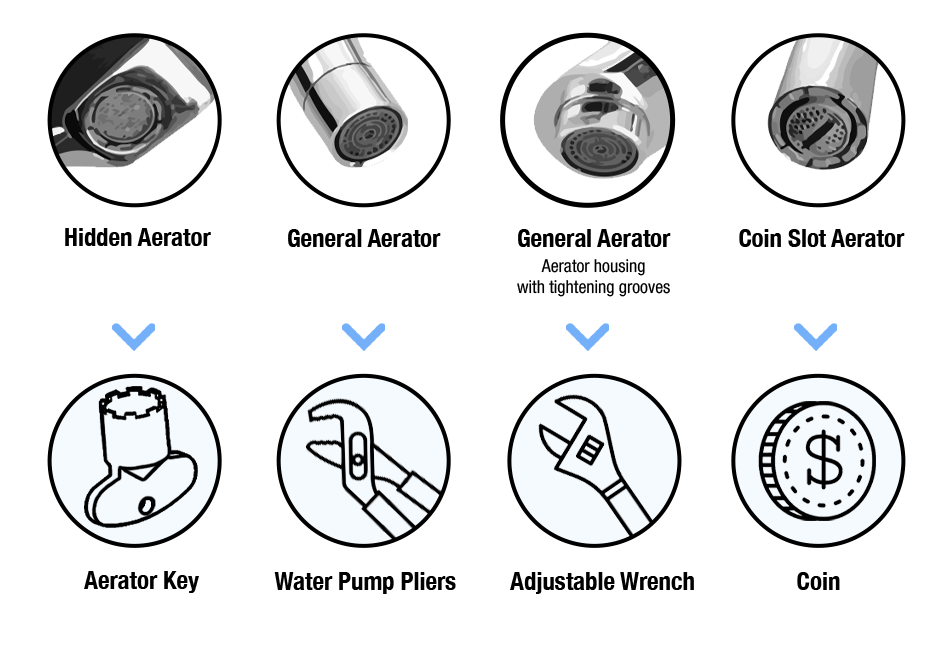

FAUCET AERATOR REMOVAL TOOL
HOW TO FIGURE OUT
WHICH AERATOR YOU NEED
The most basic thing you need to know about your faucet in order to replace or add an aerator is the threading - either male or female. If your kitchen faucet has threads on the outside, it is male threaded - which means you need to buy a FEMALE threaded aerator to fit over it. Conversely, if your faucet has threads on the inside, it is female threaded and you'll need a MALE threaded aerator.
Once you've determined whether you need a male or female aerator, you'll need to determine the size. Typical "Regular" size for a faucet aerator is 15/16" male threaded or 55/64" female threaded, while "Junior" size is 13/16" male threaded or 3/4" female threaded. Some faucets use a smaller "Tom Thumb o" metric-size aerator, which is M18×1 male threaded or M16×1 female threaded.
But wait! Before you get out your tape measure, there's a very easy way to tell what size replacement aerator you'll need.
The most basic thing you need to know about your faucet in order to replace or add an aerator is the threading - either male or female. If your kitchen faucet has threads on the outside, it is male threaded - which means you need to buy a FEMALE threaded aerator to fit over it. Conversely, if your faucet has threads on the inside, it is female threaded and you'll need a MALE threaded aerator.
Once you've determined whether you need a male or female aerator, you'll need to determine the size. Typical "Regular" size for a faucet aerator is 15/16" male threaded or 55/64" female threaded, while "Junior" size is 13/16" male threaded or 3/4" female threaded. Some faucets use a smaller "Tom Thumb o" metric-size aerator, which is M18×1 male threaded or M16×1 female threaded.
But wait! Before you get out your tape measure, there's a very easy way to tell what size replacement aerator you'll need.
First, take the existing aerator off your faucet - usually this just unscrews, although you may need a wrench if it's on there tight. Then grab some spare change from the couch or your rainy day jar, specifically a quarter, a nickel, and a dime. Place the coins over the aerator. If vour current aerator is about the size of a quarter, you'll need a "Regular" sized replacement. If it's about the size of a nickel, you have a "Junior" size aerator. If your aerator is approximately the size of a dime, you'll need a "Tom Thumb «" size aerator.
Remember that some faucets are oddly sized and you may need an adapter - either to change the threading of your faucet or to ensure a proper fit. After you've figured out what size aerator you'll need and whether or not you'll need an adapter, it's time to decide what kind you need. Not all aerators produce the same type of stream, and some have special features for a variety of applications.
MANUAL
HOW TO
INSTALL
HELIOS FILTER
*Please turn off the water before installing the product.
Use the included wrench.

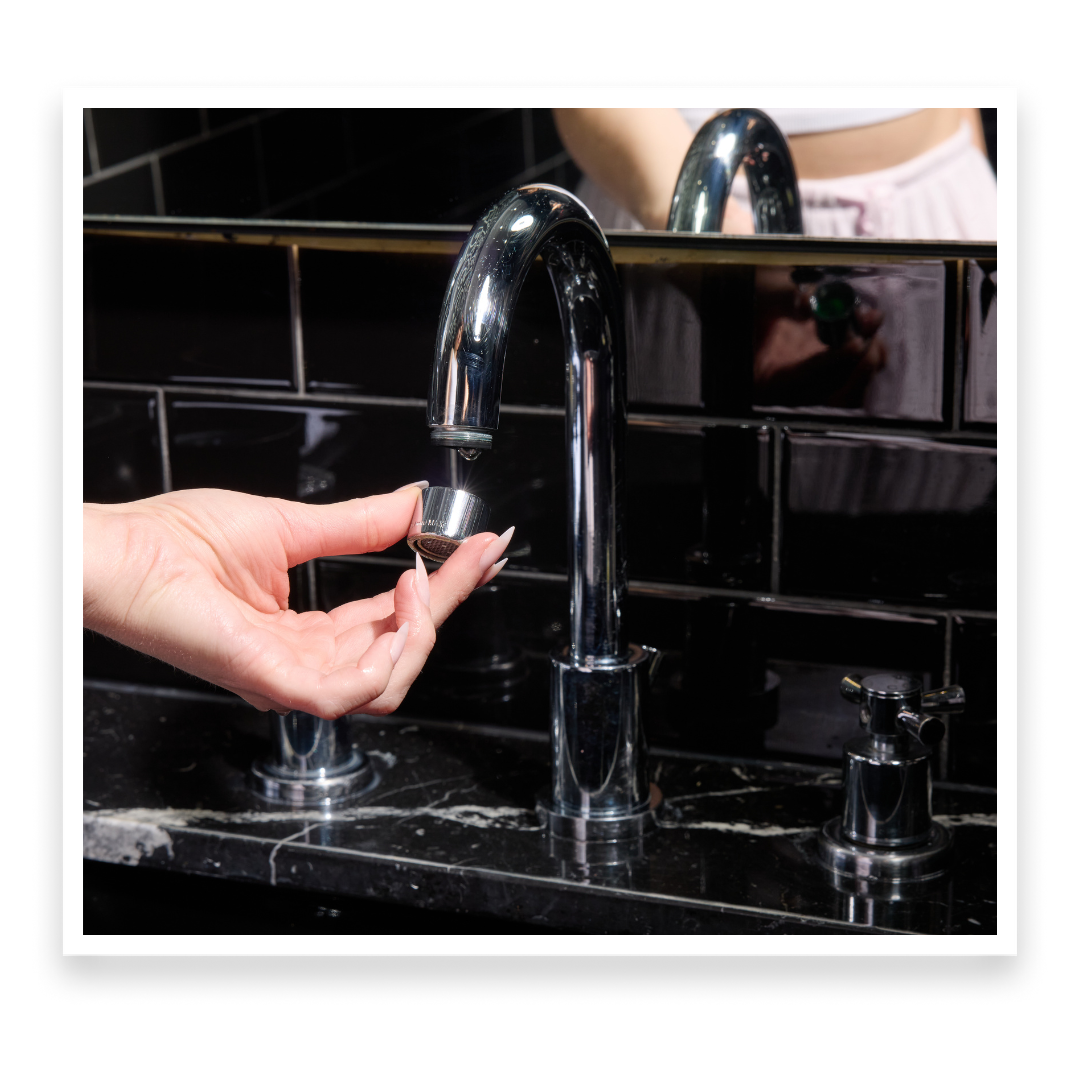

Remove the aerator off the end of your faucet.
*You can use your hand or pliers if it's tight.

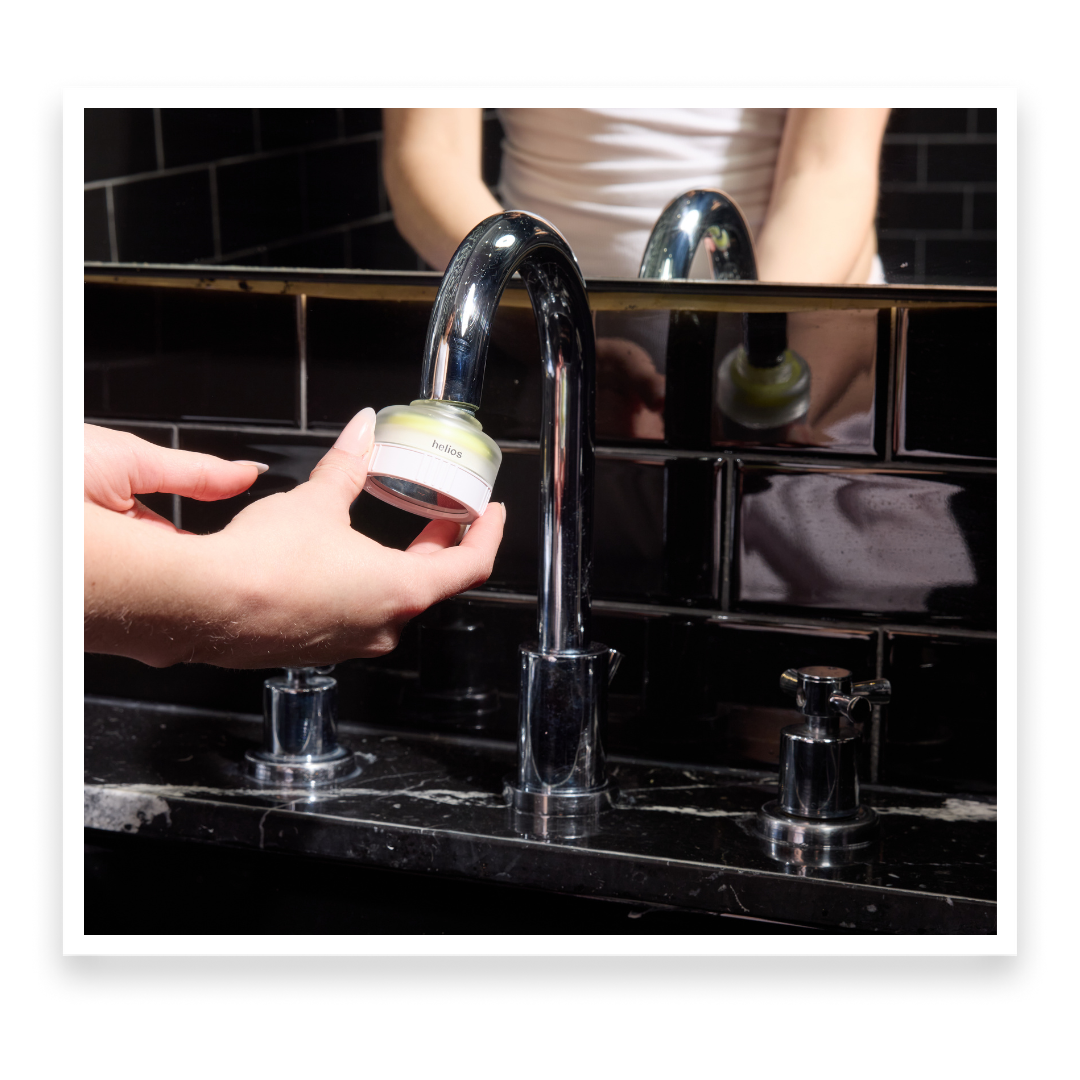

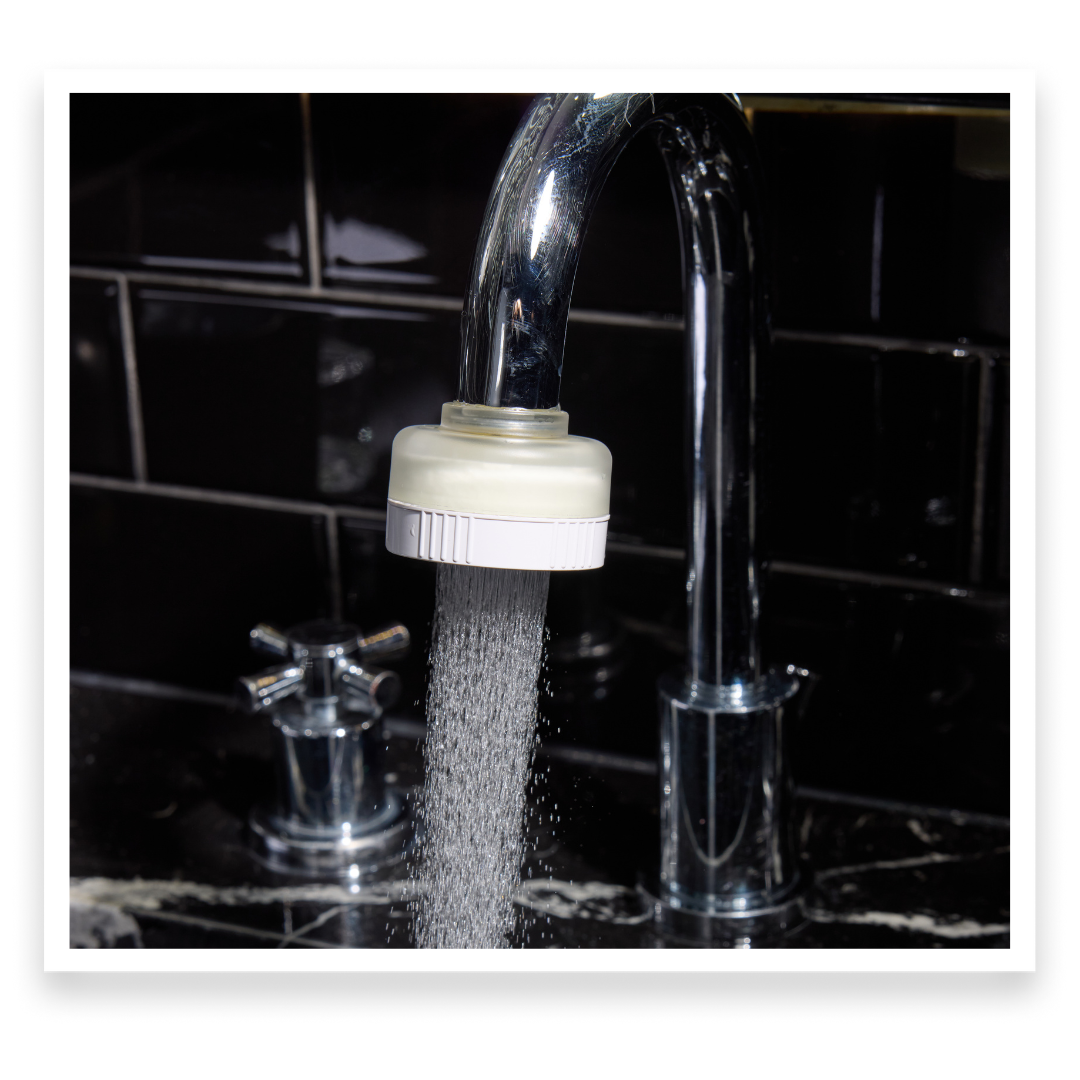

Connect the Helios Filter.
Once you've removed the aerator, twist on the helios filter clockwise.
*measure the size of the adapter first.

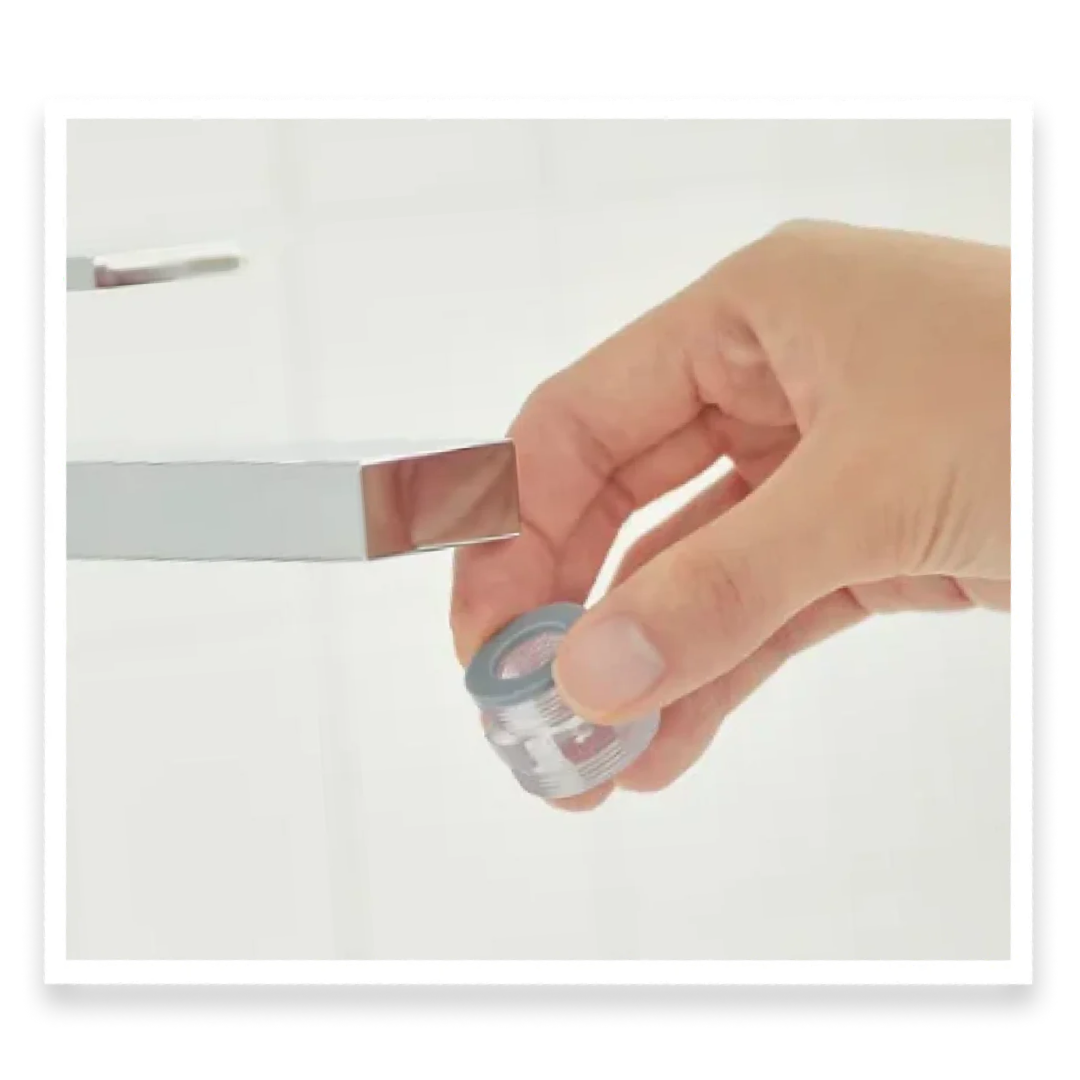

Connect the Helios Filter Adapter.
If your sink needs the adapter, attach the correct size. Some sinks may not need an adapter.

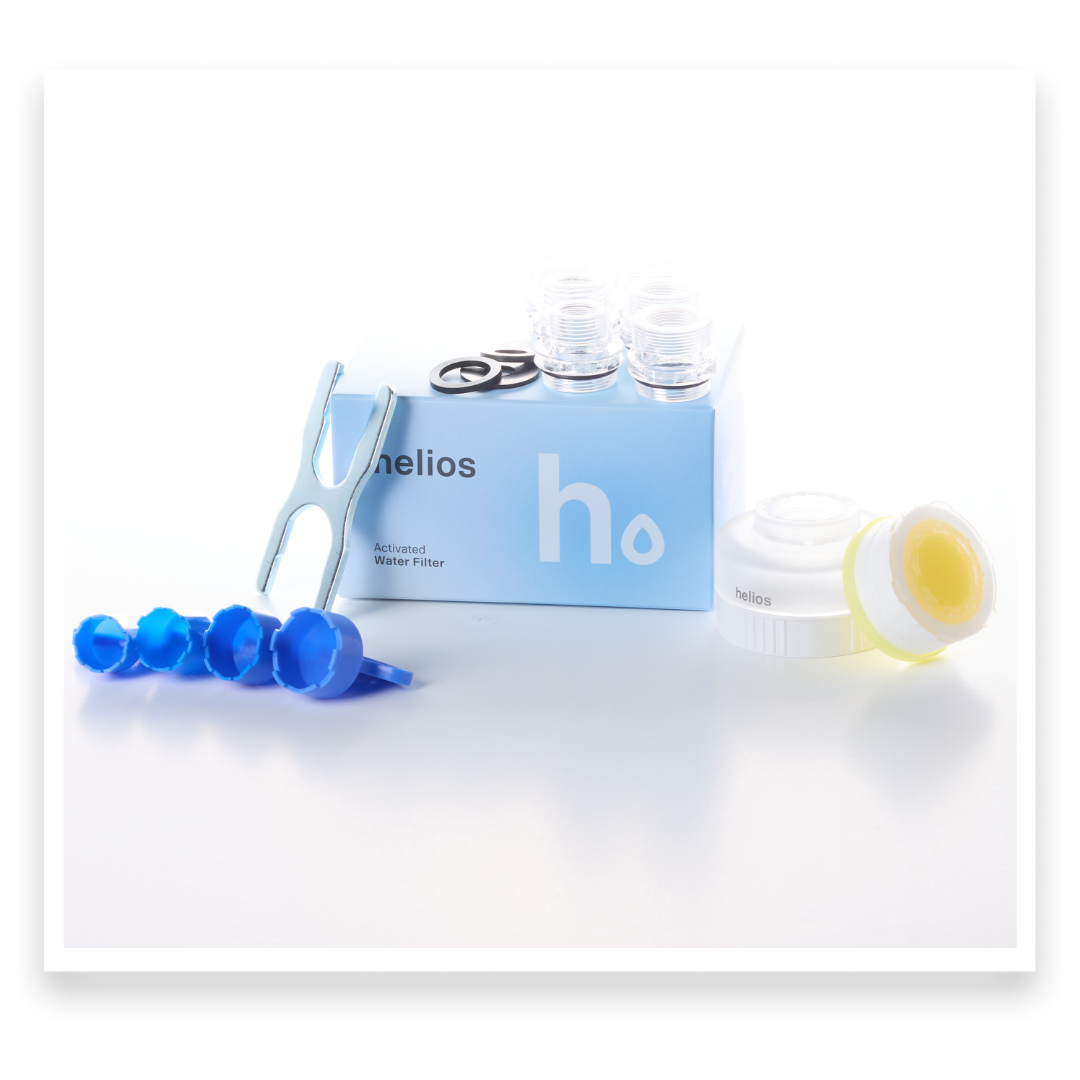

When you purchase the Helios Filter
6 different specifications of adapters are included!
Please choose an appropriate size adapter to install in order to prevent water leakage.
* The product may be damaged if excessive force is applied during installation.
When connecting the Helios Filter
Ensure it is tightened by hand, just tight enough for no leakage.
When using the adapter,
if there is a leak-proof rubber ring above the bubbler faucet of the original faucet, you can replace a similar rubber to install. If not, please use the existing leak-proof rubber ring.
Check for leaks
after connecting the helios filter.
When using the adapter,
if there is a leak-proof rubber ring above the faucet of the original faucet, you can replace a similar rubber to install. If not, please use the existing leak-proof rubber ring.
Check for leaks
after connecting the helios filter.
HELIOS FILTER
REPLACEMENT
METHOD

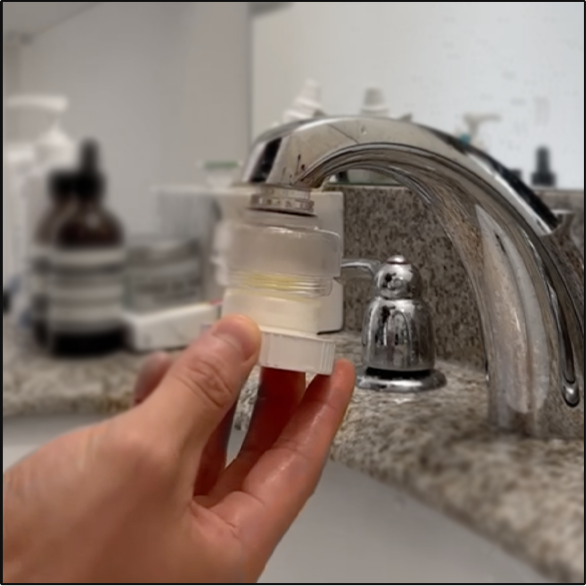

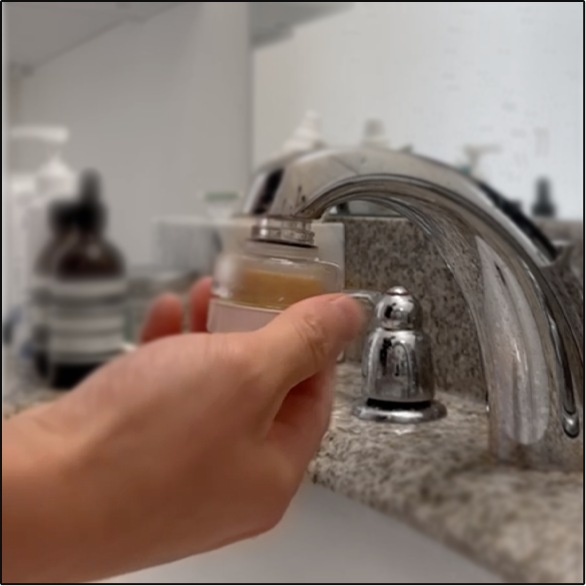

Seperate the bottom of the faucet (Helios Filter) Remove the discolored filter
Put in a new filter (gear facing up)

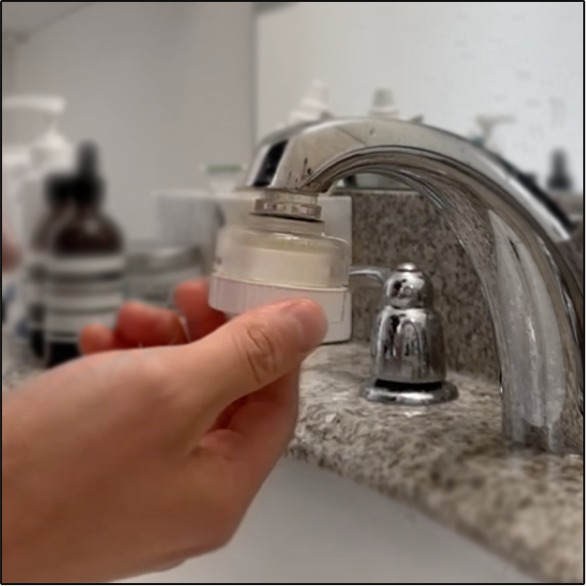

Reconnect the head and bottom of the faucet. Do not apply excessive force when tightening.
HELIOS FILTER
REPLACEMENT
METHOD
Seperate the bottom of the faucet (Helios Filter). Remove the discolored filter
Put in a new filter (gear facing up)
Reconnect the head and bottom of the faucet. Do not apply excessive force when tightening.
